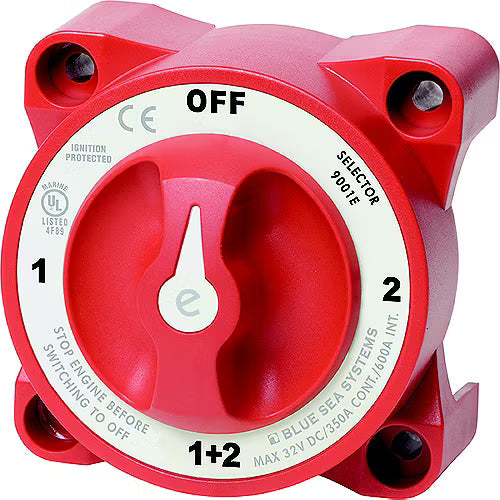

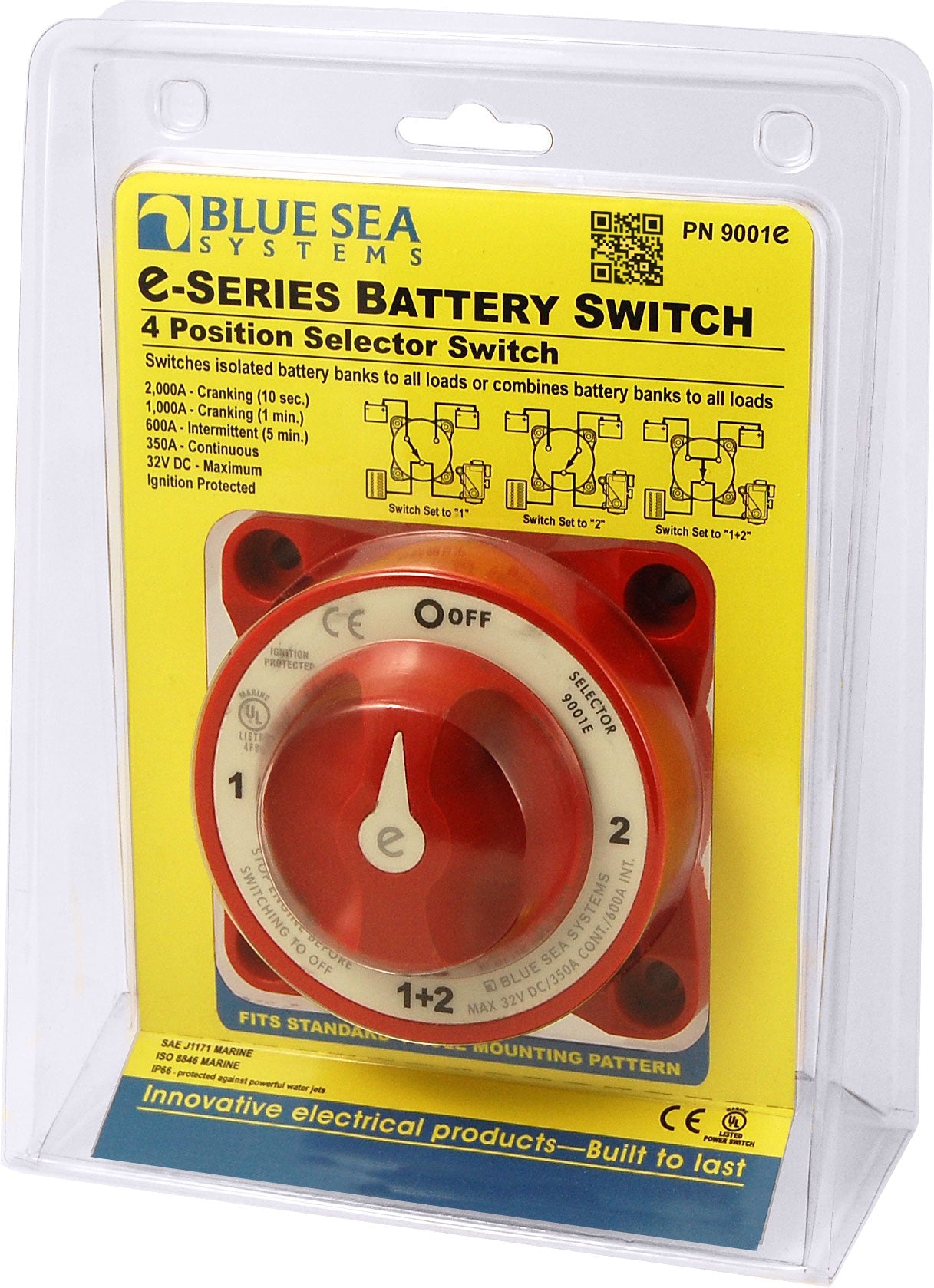

Blue Sea Systems 9001e e-Series 4 Position Selector Battery Switch

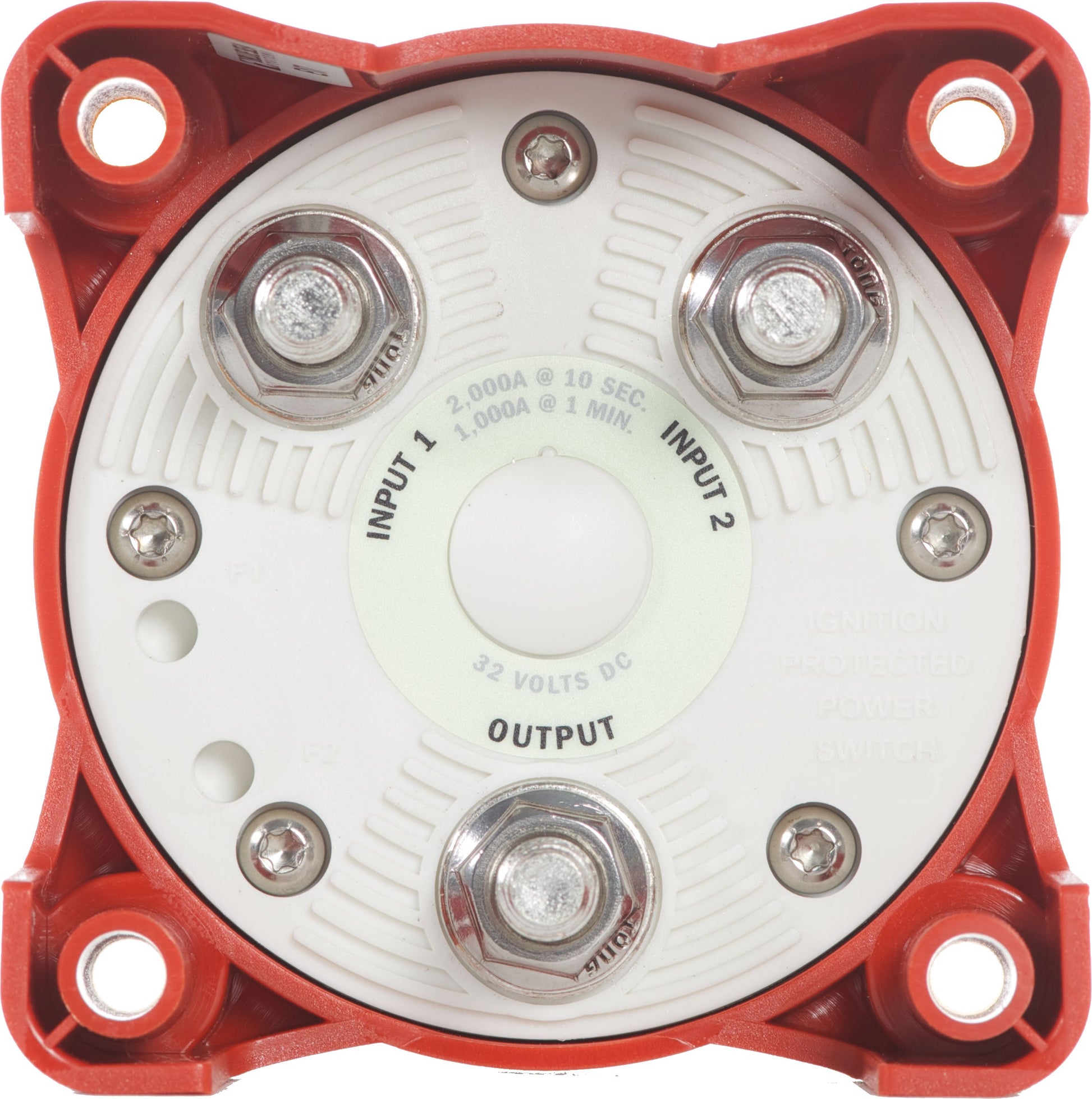

350 Ampere continuous rating for inboard gasoline and diesel engines. One-piece tin-plated copper stud design never loosens over time. Terminal studs accept 3/8" or M10 ring terminals. Ignition protected and UL Listed. Selector features make-before-break contact design.

Switch Type	Selector 4 Position
Color	Red
Switch Positions	4
Battery Combine	Yes
Alternator Field Disconnect	No
Maximum Voltage	32V DC
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	325A
Intermittent Rating	600A (5 min)
Starting Rating 30 sec	1200A
Battery Inputs	2
Cable Clearance For 4/0 AWG Cables	1.10in (27.94 mm)
Cable Size to Meet Ratings	4/0 AWG (120mm²)

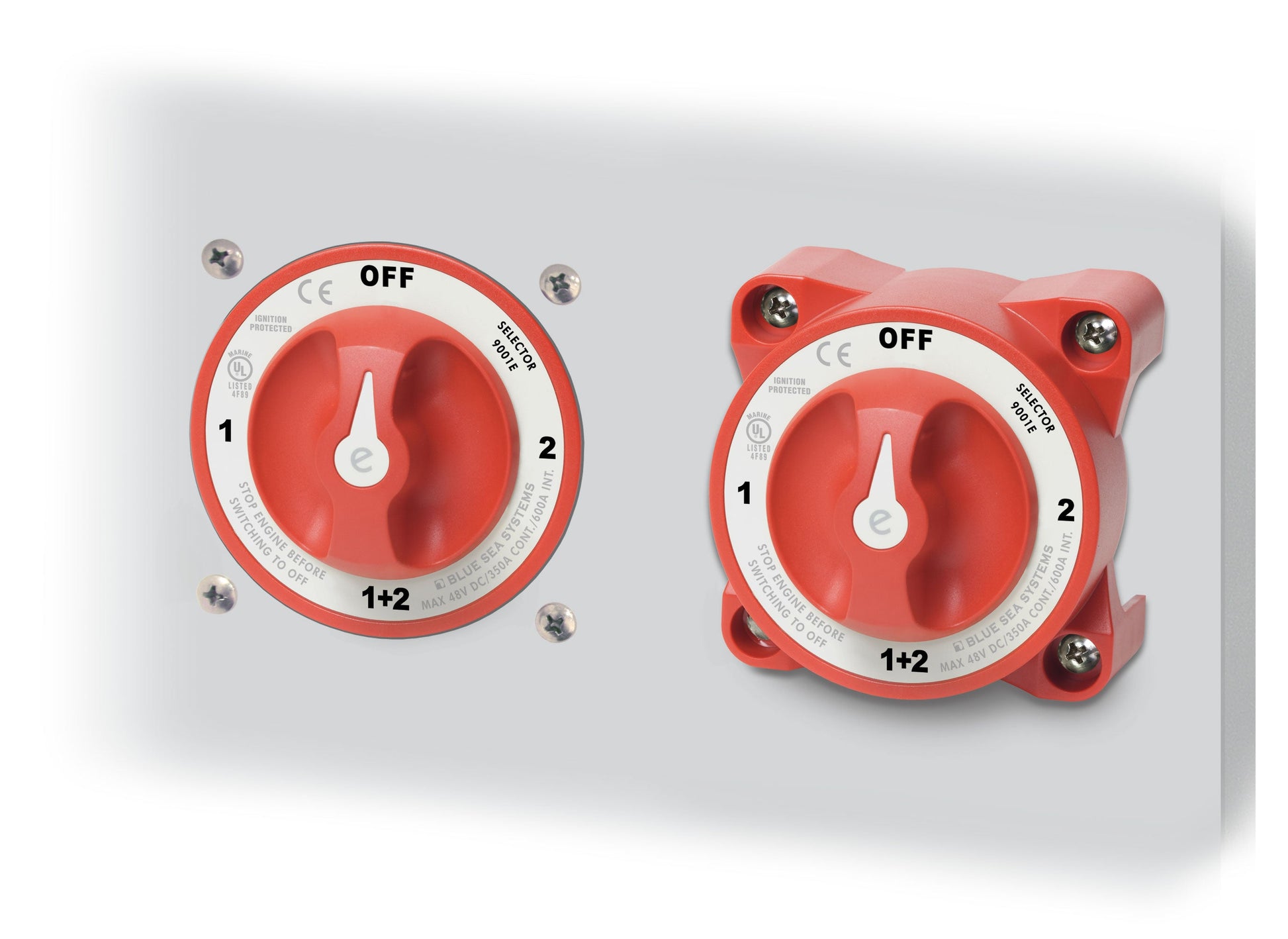

Mounting Holes	Accept 1/4" (M6) Screw
Stud Material	Tinned Copper
Switching Rating	25A
Terminal Stud Size	3/8" - 16 (M10)
